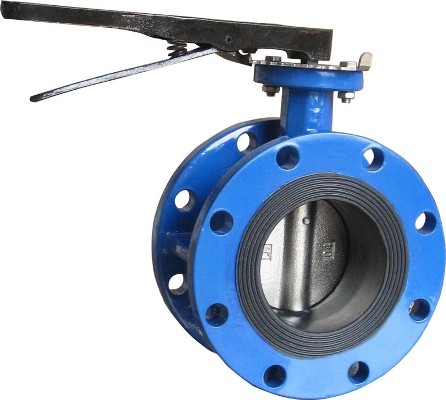

Wafer End Butterfly Valve Manufacturer, Wafer End Butterfly Valve Exporter, Wafer End Butterfly Valve Supplier, Wafer End Butterfly Valve in Mumbai, Wafer End Butterfly Valve in India, Alloy 286 Wafer End Butterfly Valve, Monel Alloy 400 Wafer End Butterfly Valve Suppliers
Butterfly Valve manufacturer, PTFE Sleeved Butterfly Valve Supplier , Flanged End Butterfly Valve Exporter in Mumbai, India
| Application | Throttling | |
| Features / Benefit | Single & Double Eccentric Design Full Lug & Semi Lug Type Design Top Mounting Pad as per ISO 5211 Unique Stem retention design to provide blow out proof stem & easy assembly & disassembly of valves Heavy Duty square grooved seat design with moulded O ring seals to act as flange gasket Self energizing seating design Through flow disc design for large size Butterfly Valves Different Lining and Metallurgy to suit a wide variety of applications including sea water & water desalination plants |
|
| Ansi Class / Rating | PN 10, PN 16, PN 20 | |
| Design Standard | AWWA C 504, API 609 CAT A | |
| Testing Standard | API 598 | |
| Size | 50 mm to 1800 mm | |
| Grades | Stainless Steel | 304/ 304L/ 304H , 316/ 316l/ 316ti, 310, 317/ 317l, 321, 347, 410, 420, 430,630, 17-4ph, 17-7ph, 15-5ph, 904l |
| Alloy Steel | Alloy 20, Alloy 286 | |
| Nickel Alloy Steel | Nickel Alloy 200/201, Monel Alloy 400/ K500, Inconel Alloy 600/ 625/ 718/ x750, Hastelloy C276/ C22, Incoloy 800/ 800HT | |
| Duplex Steel/ Super Duplex | Duplex Steel 2205/ f51/ f53, Super Duplex Steel 2507 | |
| Titanium | Grades 1/ 2/ 5/ 7/ 9/ 12 | |
| Materials | Body : Cast Iron, WCB, CF8, CF8M, Hast Alloy, Super Duplex, Alloy 20 , LCB etc Disc : Ductile Iron, WCB, CF8, CF8M, Hast Alloy, Super Duplex, Alloy 20 , LCB etc Seals : EPDM, Nitrile, Viton, Metal Seated etc |
|
| Ends | Wafer End | |
| Operation | Mannual, Pneumatic, Electric | |
